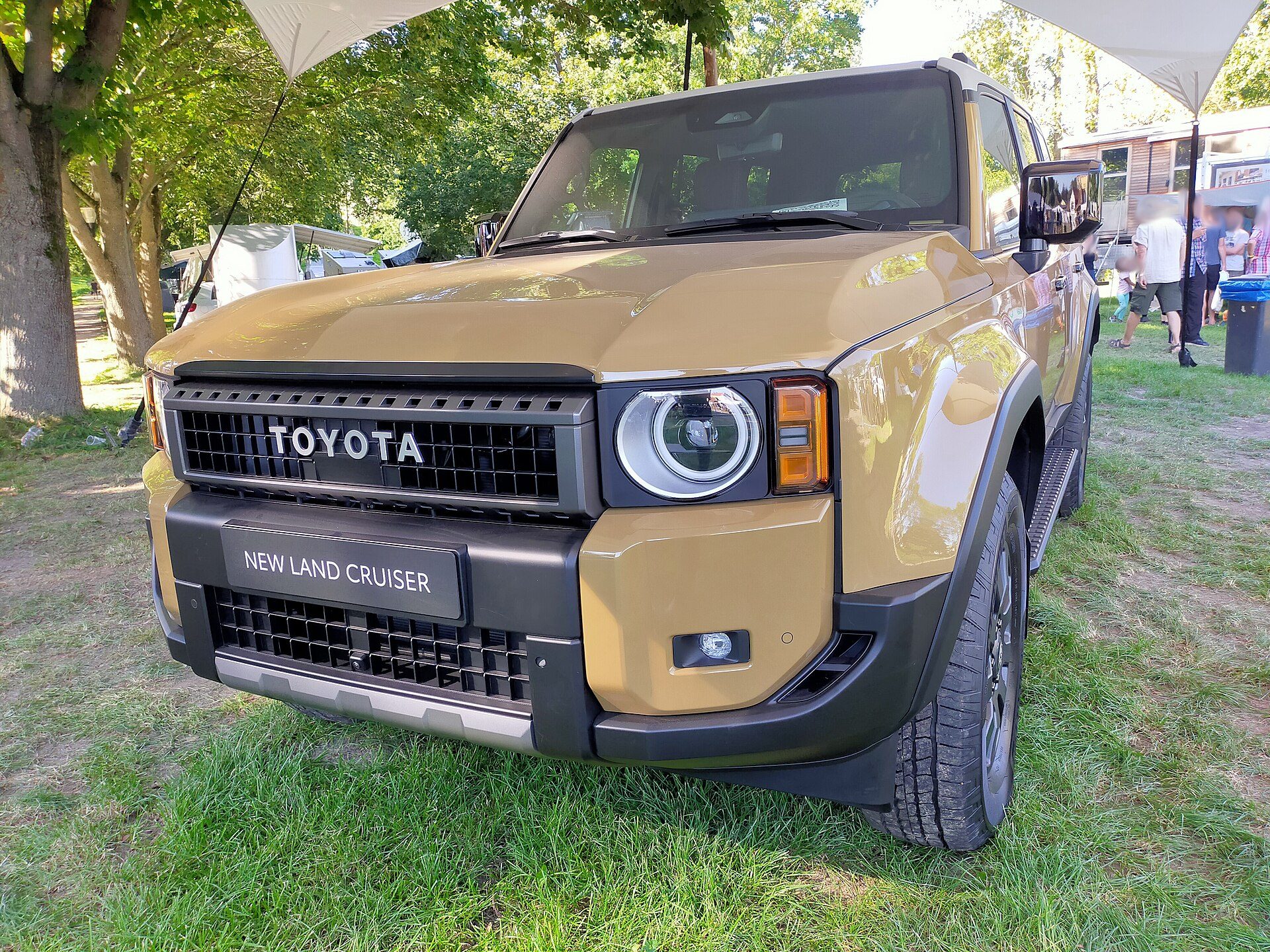

A sand-coloured 250 Series Land Cruiser with round headlights parked on grass at an outdoor display
TOYOTA LAND CRUISER · J250 · 2024–PRESENT (US)

Land Cruiser 250 Series

J250TJH250 (US HYBRID)T24A-FTS 2.4 TURBO + MOTOR326 HP / 465 LB-FTCENTER + REAR LOCKERS STANDARD (US)

“Toyota took the Land Cruiser away from America, thought about it for a few years, and brought back a Prado in a 1980s costume, which turns out to be exactly what most of us wanted. It's smaller, cheaper and boxier than the truck it replaced, and it comes with lockers as standard. The one thing it doesn't come with is a big fuel tank.”

PART 01

Overview

Where it came from, why it matters, and how it changed year to year.

The story

In December 2020 Toyota confirmed that the Land Cruiser would leave North America after the 2021 model year, ending the run of the V8 200 Series. The gap lasted two model years. On 2 August 2023 Toyota unveiled the J250. Most of the world knows it as the fifth-generation Land Cruiser Prado, but in the US it is sold simply as the Land Cruiser. It is a two-row midsize SUV rather than a three-row full-size one, it is boxier, and it starts at a much lower price than the 200 did. In North America it comes only as a hybrid. The full-size flagship, the 300 Series, still isn't sold here.

A PRADO BY ANY OTHER NAME

Americans have owned Prados for years without being told. The previous J150 Prado was sold in the US as the Lexus GX 460, and the J250 has a Lexus twin of its own in the GX 550, which uses a 349-hp twin-turbo V6. This time the Toyota-badged truck came too. It sits on the GA-F body-on-frame platform shared with the 300 Series. Toyota claims frame rigidity is up 50 percent and overall rigidity 30 percent, and the 250 is the first 'light-duty' Land Cruiser with electric power steering, which is what makes lane-tracing assist possible.

Outside the US the engine list is long. Depending on the market, the 250 is offered with a 2.4-liter turbo petrol, a 2.7-liter petrol four, the familiar 2.8-liter 1GD-FTV turbo-diesel, or that diesel with a 48-volt mild-hybrid system, which is what Australia and Western Europe get. Europe mostly calls it plain 'Land Cruiser' and keeps the Prado name only where the 300 is also sold. The US and China get the gasoline hybrid only. Every version is a four-cylinder.

BACK TO THE BOX

Wikipedia credits project chief designer Yoshito Watanabe's team with returning to practicality, durability and dependability, following a basic direction set by former Toyota CEO Akio Toyoda. They also made it look like a 1980s Land Cruiser again. The square body draws on the 60 Series. The base '1958' grade and the launch First Edition get round LED headlamps behind a TOYOTA heritage grille, and the mid-grade 'Land Cruiser' uses rectangular lamps that Toyota says were modeled on the FJ62. Toyota also says it optimized the A-pillar position so you can see more of the trail.

The US launched with three grades: the 1958 at $55,950 plus $1,395 destination, the Land Cruiser, and a First Edition limited to 5,000 trucks for North America. The First Edition came with a roof rack, rock rails and a front skid plate. Car and Driver's First Edition test car reached 60 mph in 7.7 seconds. The magazine's staff liked the slimmer size and the 40- and 80-series design cues. They complained about the thin sheet metal and doors you have to slam.

THE HYBRID IN THE ROOM

The US powertrain is the i-FORCE MAX: a 2.4-liter turbocharged four with a 48-hp electric motor in the bell housing of an eight-speed automatic, for 326 hp and 465 lb-ft. The hybrid battery is a 1.87 kWh nickel-metal-hydride pack. The EPA rates it at 22 city, 25 highway and 23 combined, compared with 14 combined for the last V8 200, and Car and Driver averaged 20 mpg over its test. Full-time four-wheel drive with a two-speed transfer case is standard, and so are locking center and rear differentials on every US grade.

The catch is the fuel tank. It holds 17.9 gallons, and with the mileage above, overlanders start looking at the fuel gauge sooner than they would like. Slee Off-Road's Arctic Trucks build swaps in a 29-gallon tank, which is more than 50 percent more. Owners also note that the battery's location gives the cargo area a sloped floor. On long, steep descents, several owners on LandCruiserForum.com report brake fade from relying on Downhill Assist alone. At the Pikes Peak brake check, a ranger measured one owner's rotors at 575°F.

SO FAR, SO TOYOTA

Americans bought it. Wikipedia counts 29,113 US sales in 2024 and 43,946 in 2025. With the First Edition gone, Toyota's 2027 line-up is two grades: the 1958 at $58,180 and the Land Cruiser at $64,255 (base MSRP, per Toyota). New options are an 'Inked' paint color and a $980 raised air intake, which Motor1 is careful to point out is not a watertight snorkel.

The recall list so far is mostly software and paperwork: an instrument-cluster update for displays that can go blank at start-up, a corrected load-capacity label on some distributor-accessorized 2024 trucks, a rear-camera fix, and an interim notice in 2026 for a fuel-pipe connector that can come loose. None of it is the kind of mechanical horror story that gets a truck a reputation, though it also isn't the 'never needs anything' legend some buyers expect. Notably, the US 250 doesn't use the V35A twin-turbo V6 whose bearing recalls have affected the Lexus LX, Tundra and some 2024 GX 550s.

SIDEBAR · THE WALRUS

The 250 on 37s, done properly

Slee Off-Road and Arctic Trucks North America built what they describe as the first US-spec Land Cruiser 250 AT37, nicknamed 'The Walrus'. It isn't just a lift. Arctic Trucks enlarges the wheel wells and moves the rear axle, which extends the wheelbase, so 37-inch BFGoodrich KO3s fit at full compression on a minimal lift.

Slee lists 11 inches of front wheel travel (2 more than stock) and 12 inches at the rear (3 more), from three-way-adjustable R53/AT dampers. The truck also gets 4.56 gears, an ARB front Air Locker to go with the factory rear locker, Slee aluminum skids and SliderSteps, and a 29-gallon fuel tank in place of the stock 17.9. It's the most complete answer anyone has given to the 250's two weak points: tire clearance and range.

Year by year

What changed, model year by model year. Sweet spot Beware

  1. 2023J250 revealed on 2 August 2023: GA-F frame shared with the 300, electric power steering, full-time 4WD with lockable Torsen centre diff
  2. 2024US launch with the i-Force Max 2.4 L turbo hybrid only, in 1958, Land Cruiser and First Edition grades (First Edition limited to 5,000 for North America)
  3. 2024–2025Model years covered by the combination-meter and camera recalls
  4. 2027New Inked paint, optional raised air intake (not a sealed snorkel), heated and ventilated second-row seats in the Premium Package. Toyota.com lists base MSRPs of $58,180 (1958) and $64,255 (Land Cruiser)
  5. 2024–2027All model years included in the fuel-tube leak recall (26V673000) announced October 2026, so check that it's been done
PART 02

Specs & capability

How it’s built, what it can do, and what fits under it.

How it’s built

Under the retro bodywork is a modern Toyota truck: a ladder frame on the GA-F platform it shares with the 300 Series and the Lexus GX 550, an independent front end with a coil-sprung solid rear axle, and a full-time four-wheel-drive system. In US trucks that's paired with a 2.4-liter turbo-hybrid and lockers as standard. The wheelbase is 112.2 inches, the same figure the 80 Series introduced.

CHASSISGA-F (TNGA-F) ladder frame, 112.2 in wheelbaseToyota claims frame rigidity up 50% and overall rigidity up 30% over the previous Prado.
4WD SYSTEMFull-time, Torsen center diff with lock, 2-speed transferElectronically shifted high and low range; normal torque split is 40/60 front to rear.
LOCKERSCenter and electronic rear, standard (US)The rear locker can split power 50/50 across the axle. No factory front locker.
ENGINE (US)T24A-FTS 2.4 L turbo I4 + 48-hp motor326 hp and 465 lb-ft combined; 1.87 kWh, 288 V NiMH hybrid battery.
SUSPENSIONIndependent front, coil-sprung live rear axleA Stabilizer Disconnect Mechanism (SDM) for more articulation is available on the Land Cruiser grade and was fitted to the First Edition.
STEERING & AIDSElectric power steering; CRAWL, Multi-Terrain SelectFirst light-duty Land Cruiser with EPS. CRAWL Control has five speeds; Multi-Terrain Select works in 4HI and 4LO.

Variants & engines

YEARSPLATFORMENGINEOUTPUTWORTH KNOWING
2024–presentTJH250 (US, China)T24A-FTS 2.4 L turbo I4 hybrid326 hp / 465 lb-fti-FORCE MAX, 8-speed auto. The only US powertrain.
2024–presentJ250 (Middle East and others)T24A-FTS 2.4 L turbo I4 (petrol)278 hp / 430 NmNon-hybrid turbo four with an 8-speed auto.
2024–presentJ250 (Japan, Eastern Europe, others)2TR-FE 2.7 L I4 (petrol)161 hp / 246 Nm6-speed auto. Japan's 7-seat VX uses it.
2024–presentJ250 (Europe, Japan, Middle East)1GD-FTV 2.8 L turbo-diesel I4201 hp / 500 Nm6- or 8-speed auto depending on market.
2024–presentJ250 (Australia, Western Europe)1GD-FTV 2.8 L diesel, 48 V mild hybrid201 hp / 500 Nm8-speed auto. The only engine in Australian 250s.
2024–presentLexus GX 550 (twin)V35A-FTS 3.4 L twin-turbo V6349 hp / 479 lb-ftSame GA-F platform; the US-market V6 alternative.

Capability numbers

Towing6,000 lb (2,720 kg) braked / 1,650 lb (750 kg) unbrakedOwner's manual
Payload1,100–1,300 lb (500–590 kg)Owner's manual vehicle capacity weight, varies with seating, moonroof and stabilizer disconnect
Fuel tank17.9 US gal (68 L)Owner's manual; 91 octane or higher
Ground clearance221 mm (8.7 in)Wikipedia; KBB lists 8 in minimum for the US 2024
Approach / departure / breakover31° / 22° / 25°maximum figures, Wikipedia
Fuel economyEPA 22 city / 25 hwy / 23 combinedCar and Driver averaged 20 mpg in testing
Curb weight5,037 lb (2,285 kg)2024, KBB

Wheels & tires

FACTORY TIRES
245/70R18 on 18x7 (1958)265/70R18 on 18x7.5 (Land Cruiser, First Edition)265/60R20 on 20x7.5 (Premium Package)
Bolt pattern6x139.7 (6x5.5")
Offset+60 mm (Land Cruiser / First Edition 18x7.5)
Center bore95.1 mm
Lug threadM14x1.5
Lug-nut torque97 lb-ft (131 N·m)
LIFTBIGGEST TIREWHAT IT TAKES
Stock285/70R18 (about 33.7 in)Owners report no rubbing on gentle trails on 18x9 +40 wheels. 275/70R18 (about 33 in) fits the stock 1958 wheels, and an LT275/70R18 KO3 just fits the spare well.
1.5 in level285/70R17Fits with no rubbing on a First Edition with a 1.5-inch leveling kit and 17x9.5 −12 wheels (Threepiece).
Stock + trimming35x12.50R17Shown on a 1958 with 17x8 +25 wheels. Needs the mud flaps, crush brackets and front canards removed (they unbolt) and the fender liners reshaped with a heat gun.

Forum consensus, not a guarantee: wheel offset, tire brand and suspension wear all change clearance. Confirm before you buy.

Production & special editions

Built from October 2023 in Japan and China, the J250 replaced the 200 as the US Land Cruiser.

ProductionOctober 2023 – present
AssemblyJapan (Tahara; Hino at Hamura); China (FAW Toyota, Chengdu)
First Edition (North America)2024Round headlights, roof rack, rock rails and front skid plate; limited to 5,000 units
First Edition (Japan)2024Launch special limited to 8,000 units

'Inked' joins the palette for 2027.

PART 03

Buying one

What to pay, what to check, and how to tell a good one from a clone.

What they cost

It's still a current model, so MSRP sets the market. Used First Editions sold above sticker at first, and the premium has now gone.

New 2027 Land Cruiser 1958 (base MSRP)$58,180 + $1,495 destination
New 2027 Land Cruiser (base MSRP)$64,255 + $1,495 destination
Used, Bring a Trailer 2024–26$56.5k–91k

Base MSRP from Toyota.com (October 2026); CarScoops reported $57,880 for the 1958 when 2027 pricing was announced, and the $1,495 destination charge. Used range from 10 Bring a Trailer sales: First Editions fell from $83,000 (May 2024) to $58,500 (May 2026), and the $91,000 truck was a SEMA-exhibited build. Prices move; checked October 2026. See live listings below.

What to check before you buy

  1. 01
    Know which grade you're looking atThe 1958 has round lamps, cloth seats, 245/70R18 tires on 18x7 wheels and no stabilizer disconnect. The Land Cruiser grade has rectangular lamps, 265/70R18 tires, and SDM availability. The 2024 First Edition (5,000 built for North America) keeps the round lamps and adds rock rails, a front skid and a roof rack. Premium Package trucks ride on 20-inch wheels with 265/60R20 tires.
  2. 02
    Run the VIN for recallsCampaigns so far include an instrument-cluster software update for displays that can go blank (about 82,000 Toyota and Lexus vehicles, announced May 2026), a corrected load-capacity label on certain 2024 trucks accessorized by Gulf States Toyota, a rear-camera software fix, and a 2024–2027 recall (Toyota 26TA23, interim notice 26TB23; NHTSA 26V673000) for a fuel-tube connector that can disconnect and leak. Check NHTSA or the Toyota app.
  3. 03
    Listen for squeal in reverseFront-brake squeal when backing up is covered by TSB T-SB-0006-26, which supersedes T-SB-0046-25 and replaces pads and shims after a technician confirms the problem. Owners say you can tell it's been done from the newer anti-rattle springs on the caliper.
  4. 04
    Check the hybrid-battery ventsThe cooling intakes look like speaker grilles in the lower side trim at the rear door opening. Make sure nothing is blocking them. Owners have found cargo and even a plastic bag over them, and some owners got battery cooling-fan maintenance warnings at low mileage; in one case the dealer found nothing and cleared a reminder it thought had been set at the wrong interval.
  5. 05
    Test the 12 V batteryOwners on LandCruiserForum.com report no-starts after leaving doors or the hatch open for a few minutes at camp. Have the 12 V battery load-tested and ask whether it has been replaced.
  6. 06
    Look underneathOn used trucks, pull the front skid plate. Owners report stripped skid-plate bolt threads from repeated oil changes. Look for trail damage, and check whether any lift kit came with an alignment.
  7. 07
    Ask for diff and transfer-case service recordsThe owner's manual calls for 75W-85 GL-5 in the differentials, and owners report the dealer parts counter doesn't always stock it. Ask what was used.
  8. 08
    Do the range mathA 17.9-gallon tank at the EPA's 23 mpg combined is about 410 miles in theory, and less with bigger tires, a roof rack or a trailer. If you travel remote, budget for jerry cans or an aftermarket long-range tank.

Spotting the real thing

Three US grades share one powertrain, and the differences are mostly in kit. The badge to check is First Edition, which is easy to copy.

  1. ID
    1958Round headlights, unpainted plastic body panels, cloth seats and 245/70R18 tires on 18x7 wheels. Toyota lists rear and center locking differentials as standard on the 1958; the Stabilizer Disconnect Mechanism is a Land Cruiser-grade item.
  2. ID
    Land Cruiser gradeRectangular headlights, painted panels, heated and ventilated front seats, wider 265/70R18 tires, rear locker and stabilizer disconnect. The Premium Package brings 20-inch wheels.
  3. ID
    First Edition2024 only. Limited to 5,000 for North America, it combines the round headlights with a factory roof rack, rock rails and front skid plate. Check the window sticker or build sheet.
  4. ID
    Name confusionIn the US and much of Europe it's just 'Land Cruiser'. Japan calls it the Land Cruiser 250, and Australia and other markets keep the Prado name. The Lexus GX 550 is the same platform.

Recalls & service bulletins

Open recalls follow the VIN, not the model. Run yours through NHTSA before you buy, and ask the seller for dealer records showing recall work.

Check a VIN at NHTSA ↗
Notable recalls
Fuel tube connection can leak ↗2024–2027 · NHTSA 26V673000The fuel tube connection near the tank can come apart and leak fuel. Dealers add a supplemental clamp or replace the resin tube (Toyota 26TA23/26TB23).
Combination meter may not show warnings ↗2024–2025 · NHTSA 26V341000Parts of the 12.3-inch combination meter can go blank at start-up and fail to show some warnings or indicators (FMVSS 101). Toyota put the US total at about 82,000 Toyota and Lexus vehicles (May 2026).
Panoramic View Monitor camera freeze ↗2024–2025 · NHTSA 25V744000A software error can freeze or blank the rear camera image in reverse (FMVSS 111).
Load-capacity modification label (distributor accessories) ↗2024 · NHTSA 24V548000Gulf States Toyota recall of certain accessorized vehicles, including 2024 Land Cruisers, whose load-capacity labels were missing or wrong (FMVSS 110).
Service bulletins & known fixes
Front brake squeal / moan at low speed and in reverse ↗T-SB-0006-26 (supersedes T-SB-0046-25)New pads, shims and a revised anti-rattle spring on the front calipers; owners report rotors aren't replaced.
The one you’ll own someday

For sale now

2024–2027 · USLand Cruiser 250 (1958 / Land Cruiser / First Edition)
2024–2027 · USLexus GX 550 (V6 twin)
PART 04

Owning one

Baseline service, the repairs you’ll actually do, and where the manuals live.

Post-purchase baseline

After you buy it

Even a low-mileage 250 is worth baselining. Many owners change the factory oil early, and the diff and transfer fluids are rarely touched under the 'inspect only' schedule. Specs below are from Toyota's US 2024 Land Cruiser Owner's Manual (OM60U35U) and its Warranty & Maintenance Guide for the i-FORCE MAX hybrid (T24A-FTS).

Engine oil & filterILSAC GF-6A SAE 0W-20 (5W-20 only as a stopgap) · 5.9 qt with filterThen every 10,000 mi / 12 months; 5,000 mi for dusty or towing use (Toyota)

Remove the front skid plate. Check the level with the hybrid system off after about 5 minutes. Many owners do the first change early, at 1,000–1,500 mi.

Engine air filterOE-type panel filterReplace every 30,000 mi; inspect more often on dirt roads (Toyota)
Cabin air filterOE-typeReplace every 30,000 mi (Toyota)
Hybrid battery cooling intake filterVacuum-clean the filter behind the cargo-area side ventsInspect every 5,000 mi, clean every 20,000 mi (Toyota)

The Owner's Manual walks through the cleaning. If the filter is damaged, have the dealer replace it. Keep cargo off the vents.

Spark plugsNGK DILZKAR8E7H iridium · 0.028 in (0.7 mm) gap, do not adjustEvery 40,000 mi (Toyota)

That interval is short because the engine is turbocharged. Don't assume a V8-style 120k plug life.

Coolant (engine, power control unit, intercooler)Toyota Super Long Life Coolant or equivalent · engine 12.2 qt (14.3 qt with rear A/C), power control unit 2.5 qtIntercooler coolant first at 150,000 mi, then every 50,000 mi; engine/inverter coolant is inspected (Toyota)

There are three separate cooling loops. Check each reservoir level.

Automatic transmission (8-speed)Toyota Genuine ATF WS · 13.2 qt reference capacityReplace at 60,000 mi when towing or heavily loaded, or with lots of idling (Toyota); otherwise inspect

The manual warns that non-WS fluid can cause noise or damage. The level is checked by temperature (no dipstick), so most owners leave this to a dealer.

Transfer caseToyota Genuine Transfer Gear Oil LF, SAE 75W · 1.48 qtEvery 30,000 mi when driving on dirt or towing (Toyota); otherwise inspect

Dealers don't always stock LF. Owners have used Red Line MT-LV. Keep receipts for warranty.

Front & rear differentialsToyota Genuine Differential Gear Oil LT 75W-85 GL-5 · front 1.29 qt, rear 5.94 qtFront every 15,000 mi and both at 30,000 mi when towing or heavily loaded (Toyota); otherwise inspect

The rear locker is standard in the US. Loosen the fill plug before you drain.

Driveshaft grease pointsLithium chassis grease NLGI 2 on the spiders; moly-lithium or lithium NLGI 2 on the front slide yokeLubricate and re-torque the propeller-shaft bolts every 15,000 mi (Toyota)
Brake fluidDOT 3 (SAE J1703) or DOT 4 (SAE J1704)Inspect (Toyota); flush if the history is unknown
12 V battery12.0 V or higher open voltage (Toyota test: power off, high beams on for 30 s first)Test at purchase

A weak 12 V battery stops the hybrid system going to Ready. See the repair above.

Drive beltAutomatic tensionInspect at 60,000 mi, then every 15,000 mi (Toyota)
For the hands-on owner

Common repairs

The jobs owners actually end up doing, rated for a competent home mechanic with a decent tool kit. Always confirm torque figures, fluids and procedures against the factory service manual for your VIN, and work safely — support the truck on stands, never just a jack. You do this work at your own risk; see the disclaimer. Some parts links are affiliate links.

Engine oil and filter change
DIFFICULTY · 1 / 5TIME · ≈ 1 hourSHOP COST · Oil and filter only
SYMPTOMSScheduled service. Many owners also change the factory oil early, at around 1,000–1,500 miles.
THE FIXWarm the engine, then remove the front skid plate. Owners call it easy, but check the bolts, since some threads have been damaged. Drain the oil, replace the filter, refit the drain plug with a new gasket, and fill with 0W-20. Owners on LandCruiserForum.com report a capacity of about 5.9 quarts. Confirm it against your owner's manual and check the dipstick before refitting the skid. A Fumoto-style drain valve with a hose makes later changes cleaner, though the pan won't drain completely either way.
TOOLS & PARTSSocket set · drain pan · filter wrench · 0W-20 oil · OEM filter 90915-10009 (as reported by an owner) · new drain-plug gasket · optional Fumoto valve.
Differential and transfer-case fluid
DIFFICULTY · 2 / 5TIME · ≈ 1–2 hoursSHOP COST · Fluid only
SYMPTOMSScheduled service, or after deep water crossings or heavy towing.
THE FIXRemove the skid plate if needed. On each unit, loosen the fill plug first so you know you can refill, then drain, refit the drain plug and fill until fluid reaches the bottom of the fill hole. The manual calls for 75W-85 GL-5 gear oil in the differentials and Toyota 75W 'LF' in the transfer case. Toyota dealers don't always stock either, so owners have used Amsoil 75W-85 in the diffs and Red Line MT-LV in the transfer case. Keep your receipts in case of a warranty claim.
TOOLS & PARTSSocket set · fluid pump · drain pan · 75W-85 GL-5 gear oil · 75W transfer-case fluid · new plug gaskets.
Fix front-brake squeal in reverse
DIFFICULTY · 2 / 5TIME · ≈ 1–2 hoursSHOP COST · Covered by TSB under warranty
SYMPTOMSSquealing from the front brakes when backing up, especially at low speed.
THE FIXUnder warranty, ask the dealer for T-SB-0006-26 (pads and shims; it replaced T-SB-0046-25). Owners report rotors aren't part of the fix. One owner fixed it himself by fitting the revised anti-rattle springs from the TSB on both the lower and upper pins and greasing the pad contact points. He didn't replace pads or rotors, and he says the squeak is completely gone.
TOOLS & PARTSBasic hand tools · brake grease · TSB anti-rattle springs (and pads/shims if following the full TSB).
Clear the hybrid-battery cooling intakes
DIFFICULTY · 1 / 5TIME · ≈ 15 minutesSHOP COST · Free; filters if replaced
SYMPTOMSA 'battery cooling fan maintenance' message, or a fan running louder than usual.
THE FIXOpen the rear door and find the grille-like intakes low in the side trim on each side. Remove anything blocking them, such as bags, gear or dust, and keep cargo clear of them. If the warning keeps coming back on a low-mileage truck with clean vents, have the dealer scan it. One dealer cleared a reminder it believed had been set at 5,000 miles instead of 50,000 at the factory.
TOOLS & PARTSVacuum · trim tool if removing covers.
Keep the 12 V battery alive at camp
DIFFICULTY · 1 / 5TIME · ≈ 30 minutesSHOP COST · Battery monitor and jump pack
SYMPTOMSThe truck won't go into Ready after the doors or hatch have been open for a while with the engine off.
THE FIXLoad-test the 12 V battery and replace it if it's weak. Owners recommend carrying a lithium jump pack, fitting a Bluetooth battery monitor (the Ancel BM300 and BM200 Pro have been mentioned) to watch state of charge, or starting the hybrid system before a long unloading stop. One owner warns that a big aftermarket AGM may sit at a partial charge, because the hybrid system doesn't fully top it off.
TOOLS & PARTSBattery tester · jump pack · battery monitor · 10 mm wrench.
Make room for 35s
DIFFICULTY · 3 / 5TIME · ≈ Half a day plus alignmentSHOP COST · Wheels and tires plus labor
SYMPTOMSRubbing at full lock or compression after fitting tires over about 33 inches.
THE FIXThreepiece's fitment guide: remove the mud flaps, crush brackets and canards (they bolt or clip on and can go back later). Invert and heat-form the plastic fender liners. If you still need room, radius the back of the front fenders or trim a few inches from the front bumper. Offset matters: the guide's 35-inch example on a stock-height 1958 used 17x8 +25 wheels, and it warns that near-zero offsets add a lot of poke. Get an alignment afterwards.
TOOLS & PARTSSocket set · trim tools · heat gun · cutting tool · 17-inch or 18-inch wheels with the right offset (6x139.7, 95.1 mm bore, M14x1.5 lugs).
Sunroof leak and a damp headliner
DIFFICULTY · 2 / 5TIME · ≈ 1 hour to clean the drains; a dealer visit if the seal is at faultSHOP COST · Free to clean; seal work under warranty
SYMPTOMSWater dripping through the overhead console with the roof shut, a damp headliner or passenger footwell, or a musty smell after rain. NHTSA complaints include a rear section of the sunroof that doesn't seal and a cabin that smells of mildew every time it rains.
THE FIXOpen the roof and clean out the housing, especially the corners where the drains are. One LandCruiserForum owner found his corner drains plugged with leaves and plant matter, so water overflowed into the headliner. He cleared it with rags, a shop vac and compressed air. Keep the seals clean and the drains clear. If water still gets in once the drains are clear, it's a warranty job: UK owners report dealers removing the glass and fitting a new seal under Toyota's instructions, and one says his dealer found a TSB involving new sealant (no number was given). Some trucks needed more than one visit.
TOOLS & PARTSShop vac · compressed air · rags · flashlight
Quiet a vibrating driver's mirror
DIFFICULTY · 1 / 5TIME · ≈ 30 minutesSHOP COST · A few dollars in thin plastic and felt
SYMPTOMSAt highway speed the driver's mirror glass shakes enough to blur the view. Owners say the passenger side is solid. One NHTSA complainant says the dealer confirmed it and called it common to all Land Cruisers.
THE FIXReport it to the dealer first, while it's under warranty. On LandCruiserForum, dealers have tightened the mirror or replaced the whole assembly, sometimes twice, without curing it. Owners think the driver-side assembly simply has too much play, and their fix is a shim. One member cut a C-shaped piece of thin plastic lid with peel-and-stick felt on both faces and reported about a 90% reduction, with a little shake left on rough roads. Another used a roughly 1.6 mm Rubbermaid lid and says pivoting the mirror forward makes it easier to fit. A bare plastic shim rubbed the paint when the mirror folded, so use the felt.
TOOLS & PARTSScissors or a craft knife · thin plastic lid · adhesive felt

Manuals & documentation

Asked on every forum

Land Cruiser 250 Series questions, answered

What's the biggest tire I can fit without a lift?

Factory tires are about 31.5 inches on the 1958 and 32.6 inches on the other grades. Threepiece's fitment guide shows 275/70R18s (about 33 inches) on stock wheels and suspension with plenty of clearance and no trimming. Owners go a bit bigger: 285/70R18s (about 33.7 inches) on stock suspension, including one reported on 18x9 +40 wheels with no rubbing on gentle trails. An LT275/70R18 KO3 (33.2 inches) just fits in the spare well. 35s are possible on stock suspension, but only after removing the mud flaps, crush brackets and canards, heat-forming the fender liners and choosing the right wheel offset.

SOURCE · THREEPIECE · LANDCRUISERFORUM.COM
How much can it tow?

6,000 lb, according to Toyota, and the 1958 grade comes with a trailer brake controller. Owners note that a small engine doesn't give much engine braking, so on long grades use the transmission and low range rather than the service brakes alone.

SOURCE · TOYOTA · LANDCRUISERFORUM.COM
What fuel economy and range should I expect?

The EPA rates it at 22 city, 25 highway and 23 combined. Car and Driver averaged 20 mpg, and Flexmotor saw about 21 off-road and 24 on the highway. The tank holds 17.9 gallons, which is why long-range tanks and jerry cans are popular.

SOURCE · KBB · CAR AND DRIVER · FLEXMOTOR
Does it have lockers?

Every US grade has a locking center differential and an electronic locking rear differential. There's no factory front locker. Slee's AT37 build added an ARB Air Locker up front.

SOURCE · TOYOTA · SLEE
Why only a four-cylinder hybrid? Can I get the diesel?

North America and China only get the 2.4-liter i-FORCE MAX hybrid. The 2.8-liter diesel, the 2.7 petrol and the non-hybrid 2.4 turbo are sold elsewhere. If you want a V6 on this platform in the US, the Lexus GX 550 has a 349-hp 3.4-liter twin-turbo.

SOURCE · WIKIPEDIA
Is it a 'real' Land Cruiser or just a Prado?

It's a Prado, and the Prado has always been a real Land Cruiser: ladder frame, live rear axle, full-time 4WD with low range. It shares the GA-F platform with the 300 Series, and its 112.2-inch wheelbase is the same figure the 80 Series introduced. It's smaller than the 200 Series it replaced in the US and seats two rows, not three.

SOURCE · WIKIPEDIA · KBB
Which grade should I buy for off-road use?

The 1958 is the cheapest way into center and rear lockers, but it doesn't offer the Stabilizer Disconnect Mechanism, which gives the front axle more articulation. The Land Cruiser grade (and the 2024 First Edition) can have SDM and comes on wider 265/70R18 tires. For 2027 the 1958 starts at $58,180 and the Land Cruiser at $64,255 (base MSRP).

SOURCE · TOYOTA · THREEPIECE
What oil and fluids does it take?

0W-20 engine oil (owners report about 5.9 quarts with the filter), 75W-85 GL-5 in the differentials according to the manual, and Toyota 75W 'LF' in the transfer case. Check the owner's manual for your truck's exact figures.

SOURCE · LANDCRUISERFORUM.COM
What are the lift options?

ICON sells 1.25–3 inch systems for the 250, Dobinsons offers a 2-inch kit, and Slee's dealer build used an ADS 2.5-inch system. Threepiece tested a 1.5-inch Tuff Country leveling kit with 285/70R17s and reported no rubbing.

SOURCE · ICON · DOBINSONS · SLEE · THREEPIECE
Is the new raised air intake a snorkel?

No. The $980 factory raised intake offered for 2027 isn't watertight, so Motor1 notes it doesn't improve wading the way a sealed snorkel would. It helps with dust.

SOURCE · MOTOR1
Is it reliable? Any recalls?

It's early days. Recalls so far are an instrument-cluster software update, a corrected load-capacity label, a rear-camera fix, and a 2024–2027 fuel-tube connector recall. Common owner complaints are front-brake squeal in reverse (fixed by a TSB), 12 V battery drain, and hybrid-battery fan warnings. The US 250 doesn't use the V35A V6 involved in the LX and Tundra bearing recalls.

SOURCE · TOYOTA · PICKUPTRUCKTALK · NHTSA
PART 05

Building one

Who makes the good stuff, where owners gather, and who to watch.

Common modifications & who does them

SUSPENSION LIFTA 1.25–3 inch lift with better dampers clears 33s easily and 35s with some trimming, and it handles the weight of armor and gear.
ARMOR: SLIDERS & SKIDSThe 250 is long and low between the axles. Frame-mounted sliders and a proper front skid protect the rockers and the radiator area.
WINCH BUMPERA winch bumper gives you recovery points and a place for a winch. Slee says its LC250 bumper keeps the Safety Sense sensors working (except front cross-traffic).
FUEL RANGE17.9 gallons is the 250's biggest limit for remote travel. The tank on Slee's AT37 build holds 29 gallons and has an integrated skid.
FRONT LOCKERCenter and rear lockers come standard. Adding a front locker gives you all three, which only the top 300 Series and LX trims get from the factory.
ALL-IN-ONE BUILDSIf you'd rather buy it done, Slee builds complete LC250s, from bolt-on dealer packages to the Arctic Trucks AT37 conversion.

Clubs & events

Resources

Channels, accounts & forums

All Land Cruiser resources →
SourcesWikipedia — Toyota Land Cruiser Prado (J250)Wikipedia — Toyota Land CruiserWikipedia — Lexus GXToyota USA Newsroom — The Evolution of a Legend: The All-New 2024 Land CruiserToyota USA Newsroom — Five Things To Know About the All-New 2024 Toyota Land CruiserToyota USA Newsroom — Recall: certain 2024–2025 Land Cruiser, Mirai, Lexus UX and GX (combination meter)Toyota.com — 2027 Land CruiserKelley Blue Book — 2024 Toyota Land Cruiser specsCar and Driver (via Yahoo Autos) — 2024 Toyota Land Cruiser TestedFlexmotor — 2024 Toyota Land Cruiser First Edition reviewCarScoops — 2027 Toyota Land Cruiser pricingMotor1 — The 2027 Toyota Land Cruiser gets one upgrade it was missingPickupTruckTalk — 2024–2026 Toyota Land Cruiser problems, recalls and ownership trade-offsNHTSA — Part 573 Safety Recall Report 25V767 (V35A engines)Threepiece — 2024+ Land Cruiser 250 and GX550 wheel & tire fitment guideSlee Off-Road — AT37 LC250 Arctic Truck 'The Walrus'Slee Off-Road — Pedersen Toyota SleeBuilt LC250LandCruiserForum.com — Land Cruiser tire upgrades (p. 18)LandCruiserForum.com — Land Cruiser tire upgrades (p. 34)LandCruiserForum.com — Oil and filter change, easy peasyLandCruiserForum.com — Oil changing the 2024 Land CruiserLandCruiserForum.com — Which differential oil, 75W-85 or 75W-90?LandCruiserForum.com — Brake squeal TSB replaced with new oneLandCruiserForum.com — Battery cooling fan maintenance warningLandCruiserForum.com — Solution for weak 12V batteryLandCruiserForum.com — Brakes overheating on Pikes PeakLandCruiserForum.com — Certain 2024–2027 Land Cruiser recall, fire hazardICON Vehicle Dynamics — 2024–2026 Land Cruiser 250 1.25–3" liftToyota — 2024 Land Cruiser Owner's Manual (OM60U35U), SpecificationsToyota — 2024 Land Cruiser Warranty & Maintenance GuideLandCruiserForum.com — 2024 Toyota Land Cruiser manual linksToyota.com — 2027 Land Cruiser (grades, base MSRP, standard rear and center lockers)NHTSA — Recall 26V673000 (fuel tube connection), campaign lookupLandCruiserForum — Land Cruiser 250 First Edition sunroof leakLandCruiserForum — Side mirror vibration anyone?NHTSA — Complaints API, 2025 Toyota Land CruiserWikipedia — Toyota Land Cruiser Prado (J250)Toyota — 2024 Land Cruiser Owner's Manual (OM60U35U)Toyota USA Newsroom — Five Things To Know About the All-New 2024 Toyota Land CruiserThreepiece — 2024+ Land Cruiser 250 and GX550 wheel & tire fitment guideLandCruiserForum.com — Land Cruiser tire upgrades (p. 18)LandCruiserForum.com — Land Cruiser tire upgrades (p. 34)LandCruiserForum.com — Brake squeal TSB replaced with new oneNHTSA — Recalls API, 2025 Toyota Land Cruiser HybridNHTSA — Recalls API, 2027 Toyota Land Cruiser HybridKelley Blue Book — 2024 Toyota Land Cruiser specsCar and Driver (via Yahoo Autos) — 2024 Toyota Land Cruiser TestedCarScoops — 2027 Toyota Land Cruiser pricingMotor1 — The 2027 Toyota Land Cruiser gets one upgrade it was missingBring a Trailer — Toyota Land Cruiser J250 auction resultsTLCA — HomeTLCA — Cruise MoabToyota.com — 2027 Land CruiserToyota USA Newsroom — Recall of certain 2024–2025 Land Cruiser, Mirai, Lexus UX and GX (combination meter)
