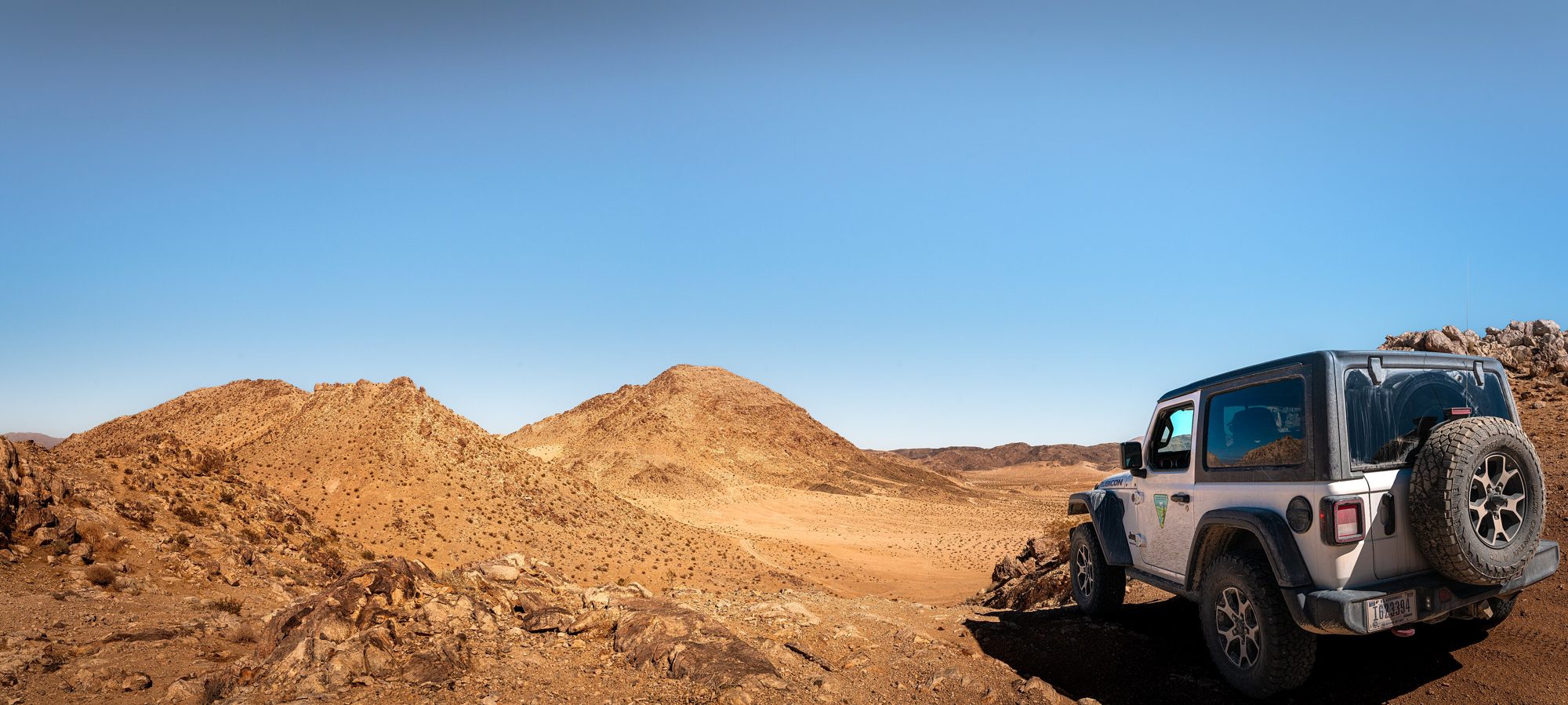

A white two-door Jeep Wrangler JL Rubicon on a rocky desert trail with brown mountains behind
JEEP WRANGLER · JL · 2018–PRESENT

Wrangler JL

JL 2-DOOR96.8 IN WHEELBASE3.6 PENTASTAR · 2.0 TURBO8-SPEED AUTO · 6-SPEED MANUAL2024 REFRESH

“The JL two-door is the most capable short Wrangler Jeep has built, and the most civilized: it's lighter, quicker and quieter than the JK, with an 8-speed that makes the Pentastar feel like it finally found its gearbox. Early trucks had real teething trouble, so buy one with its recalls done and its steering sorted.”

PART 01

Overview

Where it came from, why it matters, and how it changed year to year.

The story

Jeep unveiled the JL at the Los Angeles Auto Show on November 29, 2017, and the short two-door, the purest Wrangler, followed the four-door into production at Toledo in early 2018. On paper it changed little: still body-on-frame, still solid axles front and rear, still doors and a windshield that come off. In practice it was a thorough rethink. Wikipedia puts it about 90 kg (198 lb) lighter than the JK, with a lower beltline, bigger windows and a grille whose seven slots lean back like the TJ's.

WHAT CHANGED UNDERNEATH

The 3.6 Pentastar carried over at 285 hp and 260 lb-ft, now with an optional eTorque mild-hybrid system. It drove through either a six-speed manual or the 850RE eight-speed automatic. A 2.0-liter turbo four with 270 hp and 295 lb-ft arrived later as an eight-speed-only option. Steering stayed recirculating-ball, now with electric pump assistance, and three 4WD systems were offered: part-time Command-Trac, full-time Selec-Trac and the Rubicon's Rock-Trac with 4:1 low range.

The axles were new Dana designs. Way of Life's breakdown lists an M186 front and M200 rear (the familiar 'Dana 30 and Dana 35' sizes) on the Sport and Sahara, an optional M220 rear bundled with the limited slip, and wider M210/M220 Dana 44s with electric lockers on the Rubicon. Quadratec's 2020 specs give the two-door Rubicon 10.8 inches of ground clearance on a 96.8-inch wheelbase, and a 1,000-lb payload.

A ROUGH START

Early JLs had real problems. Over 18,000 2018–2019 Wranglers were recalled for a poorly welded track-bar bracket, and NHTSA then opened an investigation covering about 270,000 JLs over frame-weld and steering complaints. In August 2019 FCA started fitting a stronger steering damper free of charge, after finding that the original could take in air in the cold and lose damping. Manual trucks were recalled because the clutch pressure plate could overheat, and Jeep later switched the early aluminum steering boxes to cast iron.

None of that stopped the JL from winning the 2019 Four Wheeler SUV of the Year as a Rubicon, along with Motor Trend's SUV of the Year. It even starred in a Super Bowl LII ad, with Jeff Goldblum recreating his Jurassic Park chase in a silver two-door Rubicon.

THE 2024 REFRESH

For 2024 Jeep gave the JL a mid-cycle update rather than a replacement. Every Wrangler got a 12.3-inch Uconnect 5 screen, side-curtain airbags for both rows, a slimmer grille with blacked-out slot frames, and an antenna built into the windshield frame so it stops catching branches. Hagerty lists the rest: a factory 8,000-lb Warn winch option, power seats sealed for fording, a full-floating Dana 44 HD rear axle for the Rubicon, 33-inch tires and a rear locker for the Willys, and a new Rubicon X with 35s.

The refreshed two-door still faces the same rivals as before, and more of them: the Ford Bronco, and further up the price list the Defender 90 and the G-Class. None of them has removable doors, a fold-down windshield and solid axles at both ends.

SIDEBAR · THE BLM'S RUBICONS

Government-issue two-doors

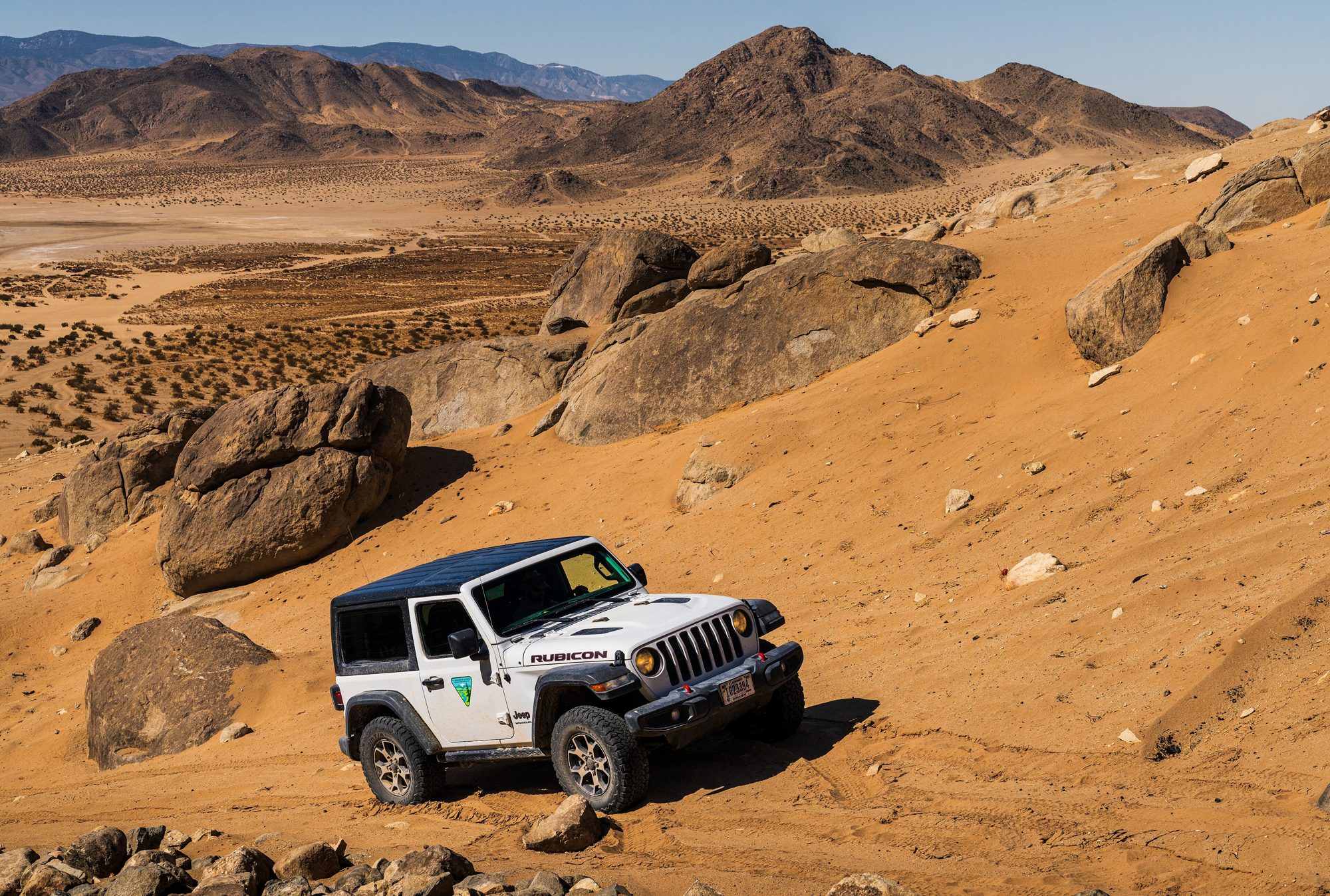

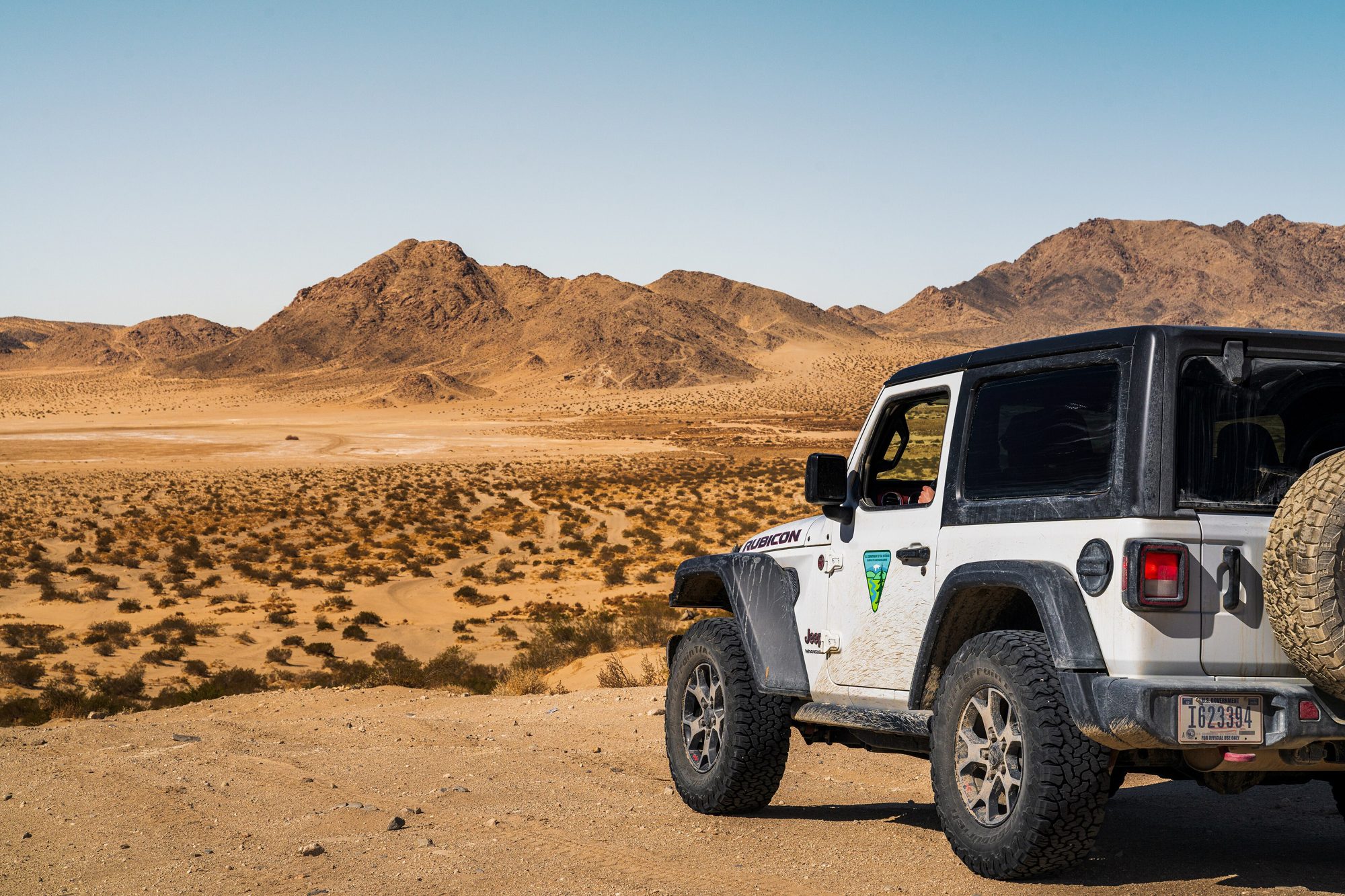

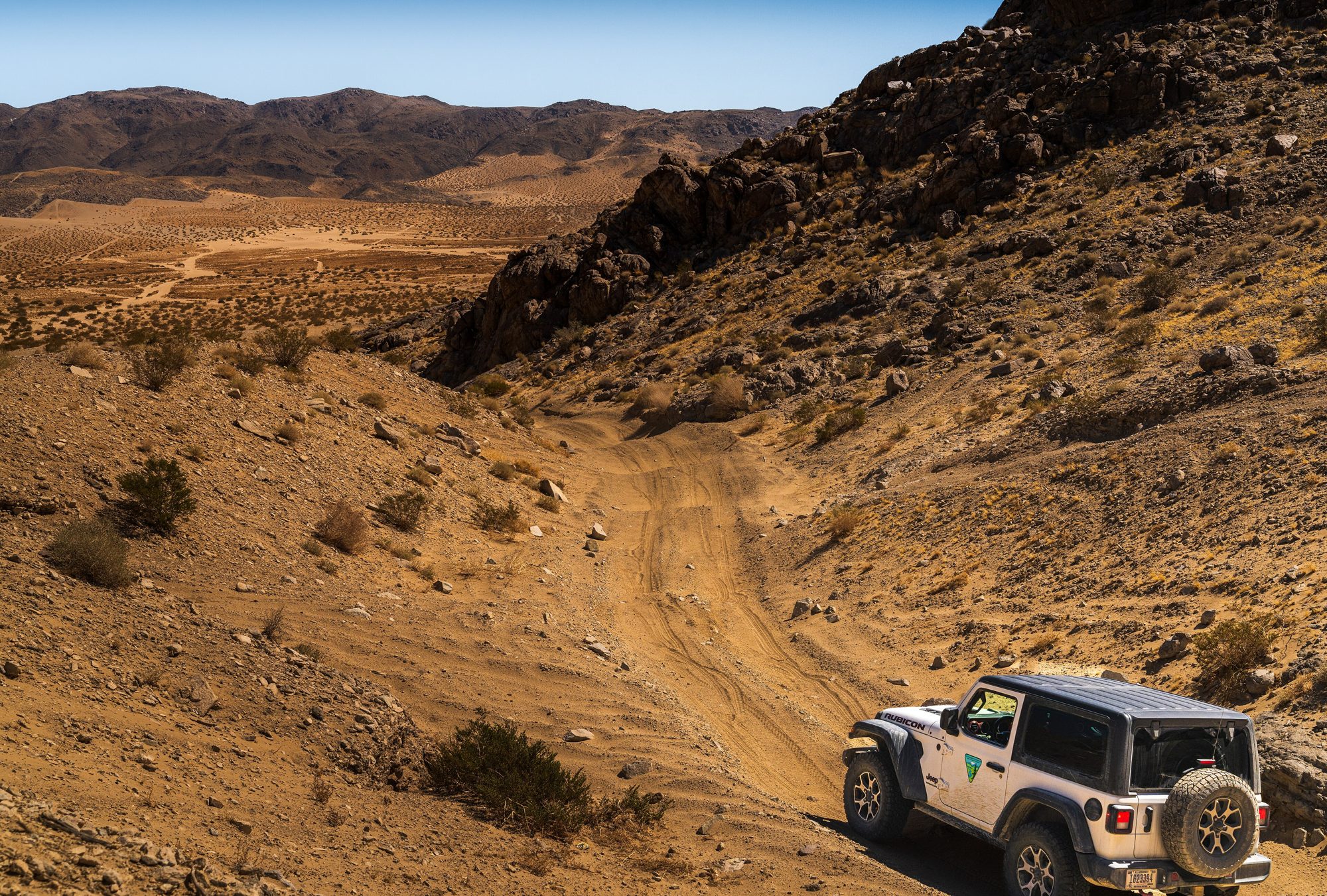

The photos on this page show a white two-door JL Rubicon wearing Bureau of Land Management door logos in California's Johnson Valley OHV Area. The BLM published the pictures into the public domain, which is why we can show them.

It's a fitting job for the short JL. Its short wheelbase suits tight desert washes, and like every Rubicon it has lockers front and rear and a disconnecting sway bar.

Year by year

What changed, model year by model year. Sweet spot Beware

  1. 2018JL launch (four-door production from November 2017, two-door from early 2018): 3.6 Pentastar with a 6-speed manual or 8-speed auto, plus a 2.0 turbo with eTorque (auto only). Early trucks need the track-bar weld, steering-shaft and V41 damper fixes.
  2. 20203.0 EcoDiesel V6 (260 hp) arrives, four-door only; later subject to high-pressure fuel pump recalls
  3. 2021Wrangler 4xe plug-in hybrid (375 hp, 21-mile EV range) and Rubicon 392 (6.4 Hemi, 470 hp), both four-door only. Xtreme Recon package (35s, 4.56 gears, 1.5 in lift) for the four-door Rubicon and 392; 4.88 axles optional on Rubicon.
  4. 2023Lower-priced Willys 4xe; Rubicon 20th Anniversary edition
  5. 2024Facelift: new grille (except Sport/Sport S), standard 12-inch Uconnect 5, new Rubicon X trim. Xtreme 35 package reaches the two-door. EcoDiesel dropped. Rubicon 392 'Final Edition'.Sweet spot
  6. 2025Rubicon 392 continues, still badged 'Final Edition'; Stellantis drops the 4xe from the US market (Wikipedia)
  7. 2026Moab 392 tops the range (four-door only); reworked door hinges for easier removal; 3.6 still offered with the manual; no 4xe in the US
PART 02

Specs & capability

How it’s built, what it can do, and what fits under it.

How it’s built

The JL keeps a separate ladder frame, coil springs and solid axles at both ends, with a recirculating-ball steering box powered by an electrically driven hydraulic pump. The two-door rides on a 96.8-inch wheelbase. The engines are the 3.6 Pentastar V6, with an optional eTorque belt starter-generator, and a 2.0-liter turbo four.

CHASSISLadder frame, 96.8 in wheelbase166.3 in long. About 90 kg lighter than the JK, per Wikipedia.
FRONT AXLEDana M186 (Sport/Sahara) · Dana M210 (Rubicon)Way of Life gives the M186 ring gear as about 7.32 in. The Rubicon axles are 1.5 in wider.
REAR AXLEDana M200 · M220 (limited slip or Rubicon)From 2024 a full-float Dana 44 HD rear is offered on the Rubicon (Hagerty).
4WD SYSTEMSCommand-Trac · Selec-Trac · Rock-Trac 4:1Selec-Trac adds a full-time mode; Rock-Trac is Rubicon-only.
ENGINES3.6 Pentastar V6 · 2.0 turbo I4285 hp / 260 lb-ft; 270 hp / 295 lb-ft. eTorque mild hybrid optional on the V6, standard on the early 2.0.
TRANSMISSIONS6-speed manual · 8-speed 850RE automaticThe 2.0T is automatic-only.

Variants & engines

YEARSPLATFORMENGINEOUTPUTWORTH KNOWING
2018–2023JL 2-door 3.63.6 L Pentastar V6 (eTorque optional)285 hp / 260 lb-ft6-speed manual or 8-speed auto. Early trucks: track-bar weld, damper and steering-box fixes.
2018–2023JL 2-door 2.0T2.0 L turbo I4270 hp / 295 lb-ft8-speed automatic only. Wikipedia says the eTorque version of the 2.0 was dropped in 2020.
2018–2023JL Rubicon 2-doorAs above—M210/M220 Dana 44s with lockers, Rock-Trac 4:1, sway-bar disconnect, LT285/70R17 tires.
2024–JL 2-door (refresh)2.0 L turbo I4 · 3.6 L V6As above12.3-in Uconnect 5, side-curtain airbags, new grille, windshield-frame antenna, Warn winch option.
2024–Rubicon X 2-door2.0T / 3.6—35-in tires, steel bumpers, front camera and a full-time Rock-Trac case (The Drive, Hagerty).
2024–Willys 2-door2.0T / 3.6—33-in all-terrains, standard rear locker, 2.72:1 low range.

Capability numbers

Towing2,000 lb (907 kg)
Ground clearance9.7–10.9 in (246–277 mm)2018 Sport to Rubicon; 12.6 in (320 mm) with the 2024 Xtreme 35 package
Approach / departure / breakover44° / 37° / 27.8°2018 Rubicon; 47.2° / 40.4° / 32.4° with the 2024 Xtreme 35 package
Wading depth30 in (76 cm)2018 Rubicon; 34 in with the 2024 Xtreme 35 package
Crawl ratioUp to 84.2:12018 Rubicon
Fuel economyEPA 18 city / 23 hwy / 20 combined2018, 3.6 automatic (17/25 manual; 2.0T 23/25)
Turning circle34.5 ft (10.5 m)curb to curb [CONFIRM IN MANUAL]
Wheelbase96.8 in (2,459 mm)

Wheels & tires

FACTORY TIRES
245/75R17 (Sport)255/70R18 (Sahara)LT285/70R17 (Rubicon)LT315/70R17 (Xtreme 35 package, 2024+)
Bolt pattern5x127 (5x5")
Offset[CONFIRM IN MANUAL] — factory offsets not verified from a manufacturer or supplier source
Center bore71.5 mm
Lug threadM14x1.5
Lug-nut torque130 lb-ft (176 N·m), 22 mm socket (Northridge4x4, owner's-manual figure); spare [CONFIRM IN MANUAL]
LIFTBIGGEST TIREWHAT IT TAKES
Stock33 in (e.g. 285/70R17); 35 in on Rubicon with bump-stop spacersA 35 clears a Rubicon at ride height but rubs the inner fenders on compression and at full lock. Bump-stop extensions fix it at the cost of about 2 in of up-travel. On Sport and Sahara, a 33 is the sensible stock limit.
1.5 in (factory Xtreme 35)LT315/70R17 (35 in)Jeep's factory Xtreme 35 package for the two-door from 2024, on Rubicon and Willys with the 2.0 turbo only ($4,495): 1.5 in lift, 4.56 gears, 17x8 beadlock-capable wheels and a reinforced swing gate. Standard on the 2.0T two-door Rubicon X.
2–2.5 in35 inWhat Sport and Sahara need for 35s, together with bump stops and a wheel with about 4.5–5.0 in backspacing.

Forum consensus, not a guarantee: wheel offset, tire brand and suspension wear all change clearance. Confirm before you buy.

Production & special editions

The two-door JL followed the four-door into production at Toledo, Ohio, in early 2018.

ProductionEarly 2018 – present (Toledo, Ohio)
US Wrangler sales, 2019–20251,290,426 (all JL body styles, calendar years)
Xtreme 35 package2024–35s, 4.56 gears and a 1.5 in lift for the two-door Rubicon and Willys; $4,495, requires the 2.0 turbo, standard on the 2.0T Rubicon X
Rubicon X2024–Top two-door Rubicon with the previously optional equipment bundled in

2026 adds Reign (purple), Goldilocks (ochre), Joose (orange), Earl Grey and Tuscadero (pink).

PART 03

Buying one

What to pay, what to check, and how to tell a good one from a clone.

What they cost

Two-door JLs hold value well. Late Rubicons and factory-35 trucks sit near the top, while early Sports are the cheapest way into a JL.

Early Sport / Sport S$17k–27k
Driver Rubicon$27k–36k
Late / low-mile Rubicon X or modified$36k–50k

Based on about 15 two-door JL sales on Bring a Trailer in 2025–26; a 2024 Rubicon X brought $46,000. Prices move; checked October 2026. See live listings below.

What to check before you buy

  1. 01
    Run the VIN for recalls before anything elseJL recalls include the 2018–2019 track-bar bracket weld (18V-675), the manual-clutch pressure plate (20V-124, 21V-028 and 23V-116), the 2018 transmission park-lock rod (18V-280) and cruise-control software (18V-332) campaigns, and the 2021–2025 power-steering pump wiring fire risk (26V-363). Make sure they've all been done.
  2. 02
    Feel the steering at highway speedVague, light or wandering steering on a 2018–2020 truck points to the early aluminum steering box (owners cite TSB 08-074-20). A shake after bumps points to the damper, track bar or worn front-end parts.
  3. 03
    Look at the track-bar weldsExtremeTerrain warns 2018 owners to be 'mindful of the track bar to body weld.' Check both track-bar brackets for cracks and the frame welds for poor penetration, which is what owners complained about to NHTSA.
  4. 04
    Manual trucks: clutch historyAsk whether the clutch recall was done, test for slip in a high gear at low revs, and smell for a cooked clutch after a short climb.
  5. 05
    Peek at the valley on a 3.6Oil weeping at the back of the engine, under the intake, means the oil cooler/filter housing is going.
  6. 06
    2.0T: coolant level and plug receiptsCheck the coolant bottle and turbo lines for leaks, and ask for proof of the 30,000-mile spark plug changes the factory schedule calls for.
  7. 07
    eTorque: listen for start-stop faultsPickup Truck + SUV Talk lists early auxiliary-battery failures as a known JL issue, with flickering dash lights and random warnings.
  8. 08
    Decide whether you need the 2024 refreshThe 2024 update brought side-curtain airbags, the 12.3-inch screen and the full-float rear axle option. A 2018–2023 truck with its fixes done is the value buy.

Spotting the real thing

Two-door JLs come with three powertrains and two very different axle packages, and the big-ticket hardware (4xe, 392, EcoDiesel) was four-door only.

  1. ID
    Real RubiconDana M210 (44-class) front and M220 rear with Tru-Lok electronic lockers, Rock-Trac with 4:1 low range, and an electronic sway-bar disconnect. Sport and Sahara have the M186 ('Dana 30') front and M200 ('Dana 35') rear, with an optional limited slip, and Command-Trac with 2.72:1 (Selec-Trac optional on Sahara).
  2. ID
    Factory 35sFactory Xtreme 35 trucks (2.0T two-door Rubicon and Willys from 2024; standard on the 2.0T two-door Rubicon X) have LT315/70R17 BFGoodrich KO2s on 17x8 beadlock-capable wheels, 4.56 gears, a 1.5 in lift and a reinforced swing gate.
  3. ID
    EngineThe 3.6 Pentastar comes with the 6-speed manual or 8-speed auto. The 2.0 turbo is auto-only. There was never a two-door 4xe, 392 or EcoDiesel.
  4. ID
    Pre- or post-facelift2024-on trucks have the 12-inch Uconnect 5 screen with horizontal dash vents. All but Sport and Sport S also get the new grille.
  5. ID
    JL vs JK at a glanceThe JL's headlights cut into the grille, the spare sits lower and the Jeep logo is no longer on the grille.

Recalls & service bulletins

Open recalls follow the VIN, not the model. Run yours through NHTSA before you buy, and ask the seller for dealer records showing recall work.

Check a VIN at NHTSA ↗
Notable recalls
Front track bar bracket welds (the 'frame weld' recall) ↗2018–2019 · NHTSA 18V-675Track bar brackets may be improperly welded and separate from the frame, reducing steering capability; dealers inspect and repair the welds.
Intermediate steering shaft weld ↗2018 · NHTSA 18V-343The shaft may not have been properly welded and can split, so the wheel loses centre (recall U48).
Rear underbody ladder rail corrosion ↗2018 · NHTSA 18V-231The rail can corrode, weakening the rear floor and loosening the left rear seat mount; dealers apply rust protection (recall U27, 106 vehicles).
Steering column stub shaft ↗2019 · NHTSA 19V-201Improperly machined stub shafts can break and detach the steering wheel (recall V29).
Manual-transmission clutch pressure plate ↗2018–2020 · NHTSA 20V-124Pressure plate may overheat and fracture (recall W12).
Clutch overheating software ↗2018–2021 · NHTSA 21V-028Expansion of the clutch pressure-plate overheating recall to 2018–2021 manual trucks.
Clutch assembly replacement ↗2018–2023 · NHTSA 23V-116Further expansion to 2018–2023 manual trucks (pressure plate may overheat and fracture); 24V-572 re-flashes some 2021 trucks already remedied under it, because the new software could stall the engine.
Left lower control arm bracket weld ↗2020 · NHTSA 20V-042Bracket and weld may be mispositioned (recall W01, 3,005 vehicles).
Frame stud can puncture fuel tank ↗2020–2022 · NHTSA 23V-191In a crash a frame stud may puncture the tank (recall 28A).
Instrument cluster short ↗2018–2024 · NHTSA 24V-652The cluster can short internally and fail (recall 30B).
Electric-hydraulic power steering pump wiring fire ↗2021–2025 · NHTSA 26V-363Pump wiring can overheat and start a fire even when parked; owners told to park outside until repaired (1,076,999 vehicles across Wrangler and Gladiator).
Service bulletins & known fixes
Death wobble: steering damper replacement ↗CSN V41About 192,000 2018–2019 JLs get a new front steering damper for a sustained steering-wheel shimmy after bumps, especially above 55 mph and below 40°F. It's a customer satisfaction notification, not a safety recall.
Steering-wheel shimmy after road irregularities ↗TSB 19-002-19November 2019 bulletin for 2018–2020 JL (and 2020 Gladiator) that points technicians to a diagnosis and repair video for the steering linkage and damper.
The one you’ll own someday

For sale now

2018–2023 · USJL 2-door (pre-refresh)
2024–2026 · USJL 2-door (2024 refresh)
2018–2026 · USAll JL 2-door
PART 04

Owning one

Baseline service, the repairs you’ll actually do, and where the manuals live.

Post-purchase baseline

After you buy it

Baseline a used JL by engine. The 3.6 Pentastar, the 2.0 turbo use different oils, plugs and cooling loops, and the 8-speed takes ZF-spec fluid, not ATF+4. Before spending money, run the VIN through NHTSA's recall lookup: JLs have had recalls for frame welds, clutches, power-steering pumps. Then change the gear oil, which owners skip most.

Engine oil & filter3.6: 5 qt SAE 0W-20 meeting MS-6395 · 2.0T: 5 qt full-synthetic SAE 5W-30, API SN PLUS (Mopar MS-13340)Then per the oil-life monitor [CONFIRM IN MANUAL]

The JL Pentastar takes a quart less, and a thinner grade, than the JK's: Quadratec specifies the Mopar MO-349 (68191349AA) cartridge, the 24 mm cap torqued to 18 ft-lb and the 13 mm drain plug to 20 ft-lb. The owner's-manual sheet warns that non-SN PLUS oil in the 2.0T 'can cause engine damage not covered by the vehicle warranty.'

Engine air filterPanel filterWay of Life's index of the factory schedule lists it at 30,000 mi; sooner on dusty trails
Cabin air filterBehind the gloveboxEvery 20,000 mi in the factory schedule (Way of Life index)
Spark plugs3.6: Mopar SP225755AA (2018–20) · 2.0T: Mopar 68292346AA · gaps per the 2020 manual sheet: 3.6 0.043 in, 2.0T 0.024–0.025 in3.6 at 100,000 mi; 2.0T every 30,000 mi (Way of Life index of the factory schedule)

The 2.0T's 30,000-mile plug interval is easy to miss on a used truck, so ask for receipts.

Coolant (engine, intercooler, eTorque/battery loops)Mopar 10-year/150,000-mile OAT (MS.90032) · 3.6 engine: 11.2 qt (10.6 L), plus 1.9 qt motor-generator and 2.5 qt battery loops on eTorque trucks · 2.0T engine: 10.3 qt (9.7 L), plus a 3.2–3.5 qt intercooler loopFlush at 10 years or 150,000 mi (factory schedule per Way of Life)

The 2.0T and eTorque trucks have more than one cooling loop, and the owner's-manual sheet lists separate capacities for the intercooler, the motor-generator unit and the battery. Bleed each one correctly.

8-speed automatic (850RE / ZF 8HP)Mopar ZF 8&9 Speed ATF · about 9 L total (8HP50 figure on the owner's-manual sheet)KBB's schedule lists transmission fluids at 100,000 mi

This is not ATF+4. The level is set hot at the fill plug, so it's a shop job for most owners. Mopar also sells a JL transmission filter.

6-speed manualMopar ATF+4 · 2.25 LEvery 30,000 mi under severe use (factory schedule per Way of Life)

Before you buy a manual truck, check that the clutch recall has been done.

Transfer case (Command-Trac / Rock-Trac / Selec-Trac)Mopar ATF+4 · ≈1.6 L part-time cases, ≈1.76 L full-time Selec-TracInspect at 30,000 mi; replace at 60,000 mi under severe use or 150,000 mi normally (Way of Life index)

If you use low range on the trail, treat the severe-service interval as normal.

Front axleGL-5 75W-85 (later manuals; the 2018 manual listed 80W-90) · M186/Dana 30: 0.86 L · M210/Dana 44: 1.03 LEvery 40,000 mi under severe use (Way of Life index); after any deep water crossing

JL front axles take very little oil, so a slightly low level matters.

Rear axleM220/Dana 44: GL-5 75W-85, 1.45 L (1.36 L with Trac-Lok) · M200/'Dana 35': 1.15 L of synthetic 75W-140 per the 2020 owner's-manual sheet · Trac-Lok axles need 70 ml (2.37 oz) of Mopar limited-slip additiveEvery 40,000 mi under severe use (Way of Life index)

Check which rear axle you have before buying oil (see the axle FAQ). Synthetic 75W-140 is the usual towing upgrade.

Power steering fluidMopar electric steering pump fluid (2020 owner's-manual sheet)Check the level at every oil change

JLWranglerForums members warn against topping up with ATF+4, even though some charts list it. Check for the 2021–2025 power-steering pump recall (26V-363).

Brake & clutch fluidMopar DOT 3 (DOT 4 acceptable)Flush on purchase, then every 2–3 years [CONFIRM IN MANUAL]

Manual trucks share the fluid type in the clutch master cylinder.

Driveline & front-end inspectionCV and U-joints, tie-rod ends, front suspensionEvery 20,000 mi (factory schedule per Way of Life)

Lug nuts are 130 ft-lb (22 mm socket). Re-torque the track bar and steering hardware after any lift.

For the hands-on owner

Common repairs

The jobs owners actually end up doing, rated for a competent home mechanic with a decent tool kit. Always confirm torque figures, fluids and procedures against the factory service manual for your VIN, and work safely — support the truck on stands, never just a jack. You do this work at your own risk; see the disclaimer. Some parts links are affiliate links.

Fix steering wobble: damper, track bar, then the rest
DIFFICULTY · 2 / 5TIME · ≈ 1–2 hours to inspect and fit a damperSHOP COST · Free damper replacement on affected early trucks under FCA's 2019 customer-satisfaction program; otherwise a damper or track bar
SYMPTOMSFront-end shimmy or full death wobble after a bump at 45–65 mph, with the steering wheel shaking side to side.
THE FIXOn 2018–2019 trucks, check the history first. In August 2019 FCA began offering a stronger steering damper at no charge. FCA said its engineers found air could get into the original damper in cold weather, when the oil thickens, so it lost damping. Its Customer Satisfaction Notification V41 covered about 192,000 2018–2019 JLs. Then inspect the front end the same way as on any solid-axle Jeep: have a helper rock the wheel while you watch both ends of the track bar, then check the tie-rod and drag-link ends, ball joints, control-arm bushings and wheel bearings. Replace worn parts, torque everything at ride height, and get an alignment. A damper on its own masks wobble; it doesn't cure it.
TOOLS & PARTSHelper · torque wrench · sockets · jack and stands.
Replace a loose aluminum steering box (TSB 08-074-20)
DIFFICULTY · 3 / 5TIME · ≈ 2–3 hours plus an alignment checkSHOP COST · JLWranglerForums members report dealer quotes of $1,500+ out of warranty
SYMPTOMSLight, vague, loose steering and wandering on the highway, sometimes with play you can see at the pitman arm. One owner described it as 'super light, vague and loose' at nearly 100,000 miles.
THE FIXEarly JLs used an aluminum steering gear, and Quadratec says Jeep moved to cast-iron boxes. Owners on JLWranglerForums cite TSB 08-074-20 for the swap (we couldn't see the bulletin itself), who also note it won't cure death wobble by itself. DIY: disconnect the battery, mark and remove the pitman arm with a puller, unbolt the intermediate shaft, disconnect the pressure and return lines (catch the fluid), then unbolt the box from the frame. Fit the new box with new bolts, refill and bleed the system with the specified fluid, and center the steering wheel.
TOOLS & PARTSPitman-arm puller · line wrenches · large sockets · torque wrench · drain pan · power steering fluid.
Clutch: check the recall, then replace if it slips
DIFFICULTY · 4 / 5TIME · ≈ A long day (transmission out)SHOP COST · Recall work is free; an out-of-warranty clutch kit plus labor
SYMPTOMSSlipping under load, a burning smell, or a clutch-overheat warning after crawling. Recall 20V-124 covered manual Wranglers built from August 23, 2017 to February 13, 2020 because the pressure plate could overheat, fracture and, in the worst case, start a fire.
THE FIXRun the VIN through NHTSA first. TFLcar reported 29,818 Wranglers in the original recall, and later recalls widened it: 21V-028 (2018–2021 manuals) and 23V-116 (2018–2023 manuals), with 24V-572 re-flashing some 2021 trucks already fixed under 23V-116. If the recall work has been done and the clutch is simply worn, support the transmission and transfer case, remove the driveshafts, crossmember and exhaust as needed, and drop the transmission. Replace the clutch disc, pressure plate and release bearing, and check the flywheel. Bleed the hydraulics, and replace the slave cylinder while the transmission is out.
TOOLS & PARTSTransmission jack · alignment tool · torque wrench · brake bleeder · a friend.
Replace a leaking Pentastar oil cooler / filter housing
DIFFICULTY · 3 / 5TIME · ≈ 4–6 hoursSHOP COST · Housing assembly plus gaskets, coolant and oil
SYMPTOMSOil, and sometimes coolant, pooling in the valley under the intake and running down the back of the engine. Pickup Truck + SUV Talk lists cracked Pentastar oil-filter housings and cooler adapters as a known JL issue.
THE FIXThe job follows the JK procedure. Remove the engine cover and intake plumbing, the upper and lower intake manifolds, and the cooler's sensors and bolts. Clean the valley, fit the new housing with new seals, then refill the oil and coolant and check for leaks. Torque the oil filter cap to 18 ft-lb; overtightening is a suspected contributor to cracking.
TOOLS & PARTSExternal-Torx and metric sockets · inch-pound torque wrench · hose pliers · shop towels to plug the intake ports.
Fix 2.0T coolant hose leaks
DIFFICULTY · 2 / 5TIME · ≈ 1–2 hoursSHOP COST · A Mopar hose and coolant
SYMPTOMSA dropping coolant level, a sweet smell, or crusty residue around the turbo coolant lines or the coolant bottle hoses on a 2.0 turbo. Pickup Truck + SUV Talk lists a TSB for turbo coolant return line leaks.
THE FIXPressure-test the cold system to find the leak. Drain enough coolant to get below the leak, replace the hose and its clips, refill with OAT coolant and bleed the loop. Remember the 2.0T has a separate intercooler loop. Check the dealer history too, since the TSB repair may already have been done.
TOOLS & PARTSCooling-system pressure tester · hose-clamp pliers · drain pan · Mopar OAT coolant.
Replace a front hub and bearing
DIFFICULTY · 2 / 5TIME · ≈ 1–2 hours per sideSHOP COST · A hub assembly per side
SYMPTOMSA speed-related growl, play when you rock the wheel top to bottom, or an ABS fault. Worn bearings are also on every death-wobble checklist.
THE FIXLift the corner, remove the wheel, caliper and rotor, unplug the ABS sensor, remove the axle nut and the hub-to-knuckle bolts, and pull the hub. Clean the knuckle bore, fit the new hub, and torque to the factory specification.
TOOLS & PARTSAxle-nut socket · breaker bar · torque wrench · wire brush · anti-seize.
Press in new front ball joints
DIFFICULTY · 4 / 5TIME · ≈ A day for both sidesSHOP COST · Ball-joint kit plus an alignment
SYMPTOMSClunks, wander, uneven tire wear, or movement when you rock a lifted wheel top to bottom. It's more common on lifted trucks with heavy tires.
THE FIXRemove the hub, axle shaft and knuckle, press out the old upper and lower joints with a JL-specific adapter set, press in the new ones square, and reassemble. Torque everything to the factory specs and finish with an alignment.
TOOLS & PARTSBall-joint press with JL adapters · breaker bar · torque wrench · pickle fork.

Manuals & documentation

Asked on every forum

Wrangler JL questions, answered

What's the biggest tire I can fit without a lift?

On a Rubicon, 35s. Driving Line ran 35x12.50R17s on a stock-height JL Rubicon with JKS bump-stop spacers and the stock flares. They cleared on level ground but hit the inner fenders when flexed, and the spacers cost about 2 inches of up-travel. On a Sport or Sahara, the realistic answer is a 33 with a wheel change; 35s on those trims usually need bump stops, less backspacing and often a 2–2.5-inch lift. Driving Line's test truck was a four-door, but the two-door uses the same axles and flares.

SOURCE · DRIVING LINE · PERFORMANCE PLUS
3.6 V6 or 2.0 turbo?

The 2.0T makes more torque (295 against 260 lb-ft), and the EPA rated the 2018 two-door 2.0T at 23/25 mpg against 18/23 for the 3.6 automatic (17/25 manual). It's automatic-only, has extra cooling loops and needs spark plugs every 30,000 miles. The Pentastar is the one with a manual option and a long, well-understood service history.

SOURCE · EPA (FUELECONOMY.GOV) · WAY OF LIFE
How much can a two-door JL tow?

Quadratec lists 2,000 lb for every two-door trim, against 3,500 lb for the four-door.

SOURCE · QUADRATEC
What's the payload?

Quadratec's 2020–2021 specs list 1,000 lb for the two-door. Check the door-jamb sticker on the truck in front of you.

SOURCE · QUADRATEC
Which axles do I have?

Sport and Sahara: Dana M186 front and M200 rear, with an M220 rear if the limited slip was ordered. Rubicon: wider M210 front and M220 rear with electric lockers. Way of Life notes the Sahara always has the 186 front.

SOURCE · WAY OF LIFE
Is death wobble still a thing on the JL?

Yes. Any solid front axle can do it. FCA offered early JL owners a stronger steering damper in 2019, and later fixes addressed the track-bar welds and the steering box. A worn or loose track bar, ball joints or tie-rod ends are still the usual cause, and Quadratec warns that a new damper alone only hides it.

SOURCE · QUADRATEC · EXTREMETERRAIN
What oil does the JL Pentastar take?

Five quarts of 0W-20 meeting MS-6395, with the Mopar MO-349 cartridge filter. That's a quart less and a thinner grade than the JK, so don't copy JK numbers. The 2.0T takes 5 quarts of full-synthetic 5W-30 rated API SN PLUS.

SOURCE · QUADRATEC · OWNER'S MANUAL SPEC
What changed with the 2024 refresh?

A 12.3-inch Uconnect 5 screen on every model, first- and second-row side-curtain airbags, a new grille, an antenna built into the windshield frame, an available 8,000-lb Warn winch, power seats, a Dana 44 HD full-float rear axle on the Rubicon, a better-equipped Willys, and a new Rubicon X with 35s.

SOURCE · HAGERTY · THE DRIVE
Which years should I avoid?

No JL year is a write-off, but 2018–2019 trucks had the most recalls and fixes: track-bar welds, the damper program, the steering box TSB and clutch recalls on manuals. Buy one with every fix documented, or step up to a later truck.

SOURCE · FOX NEWS · QUADRATEC · JLWF
Is the JL safe?

It's better equipped than any earlier Wrangler: side airbags and stronger B-pillars from launch, and side-curtain airbags from 2024. But Euro NCAP gave it 1 star in 2018, and the IIHS rated the four-door Marginal after it tipped over in the small-overlap test.

SOURCE · WIKIPEDIA · HAGERTY
PART 05

Building one

Who makes the good stuff, where owners gather, and who to watch.

Common modifications & who does them

SUSPENSION LIFTA 2–2.5-inch lift restores the up-travel you'd lose to bump-stop spacers and clears 35s on any trim. Correct the geometry with brackets or adjustable arms.
STEERINGHeavier tie rods, drag links and an adjustable track bar keep big tires in line, which matters more on the twitchy short wheelbase.
LOCKERS & GEARSSport and Sahara owners add lockers and regear for 35s; Rubicons usually only need gears.
ARMOROn a short wheelbase you hit fewer rockers but more bumpers. Steel bumpers and skid plates come first.
SNORKELMoves the intake above the dust and water. Hagerty says the 2024 truck can wade up to 34 inches.
ROOF RACKThe two-door has very little cargo space, so gear goes on the roof. Keep it light.

Clubs & events

Resources

Channels, accounts & forums

All Jeep resources →
SourcesWikipedia — Jeep Wrangler (JL)Quadratec — 2020 Jeep Wrangler JL SpecsQuadratec — 2021 Jeep Wrangler JL SpecsWay of Life — JL Wrangler axles: Dana M186 & M210 front / M200 & M220 rearWay of Life — JL Stock Tech Specs index (fluids, torque, maintenance intervals)Owner's-manual specification reprint — 2020 Jeep Wrangler JL fluids and capacitiesJLWranglerForums — Fluid capacities threadQuadratec — How To Do An Oil Change On A 2018 And Newer Jeep Wrangler JL 3.6L Pentastar V6Kelley Blue Book — 2020 Jeep Wrangler maintenance scheduleQuadratec — Jeep To 'Fix' JL Death Wobble Issue (August 2019)Quadratec — Jeep Death Wobble Q&A: Causes, Symptoms, Fixes and How to Prevent ItExtremeTerrain — Jeep Death Wobble: Explanations & FixesFox News — NHTSA investigating Jeep Wrangler frame welds and steering complaints (Sept 2019)JLWranglerForums — Steering Box TSB threadTFLcar — FCA recalls 33,000 2018–2020 Wrangler and Gladiator models for overheating clutch (March 2020)JLWranglerForums — 2018–2020 Jeep Wrangler JL manuals recalled for potential clutch issueNHTSA — Recall 20V-124 documentsAARP — Jeep Wrangler and Gladiator fire-risk recall (June 2026)NHTSA — Recall 26V-363 acknowledgementPickup Truck + SUV Talk — 2018–2026 Jeep Wrangler known problems (Aaron Turpen, 2026)Hagerty — 10 things Jeep changed on the 2024 WranglerThe Drive — 2024 Jeep Wrangler adds Rubicon X, cheaper 4xe and a big screen (April 2023)Driving Line — Tested: What it takes to run 35s and no lift on the Rubicon JL (Feb 2019)Performance Plus Tire — Will 35s fit a Wrangler JL without a lift?Quadratec — Jeep Tire FAQ: Top Questions AnsweredCurbside Classic — Replacing the oil cooler/filter housing on the Pentastar 3.6L V6 (2015 JK)FCA US — Customer Satisfaction Notification V41, steering damper (NHTSA-hosted)NHTSA — recalls API, Jeep Wrangler 2018Quadratec — Used Jeep Wrangler inspection checklist by generationfueleconomy.gov — 2018 Jeep Wrangler (JL) 4WD 3.6 automatic (EPA 18/23 mpg)fueleconomy.gov — 2018 Jeep Wrangler (JL) 4WD 2.0 turbo (EPA 23/25 mpg)Stellantis North America blog — Heading off-road with the all-new 2018 Jeep WranglerNHTSA — recalls API (campaign records for Jeep Wrangler 2007–2026)Wikipedia — Jeep Wrangler (JL)Wikipedia — Jeep Wrangler (US/Canada sales table)Bring a Trailer — Jeep Wrangler JL (2018+) resultsNorthridge4x4 — Jeep quick reference chart (lug thread and torque)ExtremeTerrain — Jeep wheel specifications tech guideJLWranglerForums — Wheel torque specifications JL/JLU (owner's manual figure)Performance Plus Tire — Will 35s fit a Wrangler JL without a lift?Driving Line — What it takes to run 35s and no lift on the Rubicon JLQuadratec — 2018 Jeep Wrangler JL specificationsCJ Pony Parts — How much can Jeep Wranglers tow?Stellantis North America blog — Heading off-road with the all-new 2018 Jeep WranglerStellantis North America blog — 35-inch tires come to the two-door 2024 WranglerAuto123 — 2026 Jeep Wrangler updates (Nov 2025)Gear Patrol — The Wrangler 392 is officially here to stayFCA US — Customer Satisfaction Notification V41, steering damper (NHTSA-hosted)FCA US — Service Bulletin 19-002-19, steering-wheel shimmy (NHTSA-hosted)TFLcar — FCA will install steering dampers to address 2018–2019 Wrangler 'death wobble'Off-Road.com — JL death wobble campaign V41 and class actionMopar — Jeep owner's manualsTechAuthority (FCA US) — printed owner's manualsRed Rock 4-Wheelers — Easter Jeep SafariJeep Beach — Daytona Beach, FloridaJeep Jamboree USA — 29th Rubicon Trail 2026fueleconomy.gov — 2018 Jeep Wrangler (JL) 4WD 3.6 automatic
